A Globally Conforming Lattice Structure for 2D Stress Tensor Visualization

J Wang1, J Wu2 & R Westermann1

1 Chair for Computer Graphics and Visualization, Technical University of Munich, Germany

2 Department of Sustainable Design Engineering, Delft University of Technology, The Netherlands

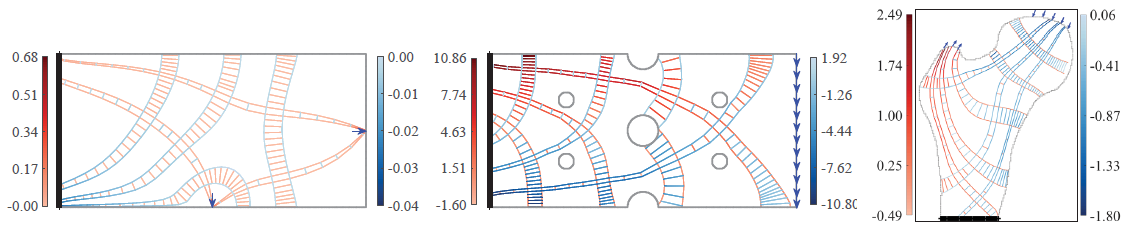

We present a visualization technique for 2D stress tensor fields based on the construction of a globally conforming lattice. Conformity ensures that the lattice edges follow the principal stress directions and the aspect ratio of lattice elements represents the stress anisotropy. Since such a lattice structure cannot be space-filling in general, it is constructed from multiple intersecting lattice beams. Conformity at beam intersections is ensured via a constrained optimization problem, by computing the aspect ratio of elements at intersections so that their edges meet when continued along the principal stress lines. In combination with a coloring scheme that encodes relative stress magnitudes, a global visualization is achieved. By introducing additional constraints on the positional variation of the beam intersections, coherent visualizations are achieved when external loads or material parameters are changed. In a number of experiments using non-trivial scenarios, we demonstrate the capability of the proposed visualization technique to show the global and local structure of a given stress field.

Associated publications

A Globally Conforming Lattice Structure for 2D Stress Tensor Visualization
J Wang, J Wu and R Westermann
Computer Graphics Forum (EuroVis 2020)
[PDF] [BiB]
